Engine wiring

Lots and lots of wires to sort through.  I sent the wiring loom ( using original chebby firewall pass thru) up thru the passenger kick panel/ fresh air drain.
About a 2.5 x 3.5 hole was cut thru into the void






The loom from underneath


The interior loom is just long enough to reach up under the glovebox. you can see the kickpanel void on the right.
Jeep was kind enough to put some foam over the top of it to keep the wind out.


I destroyed the original glovebox trying to get it out. Oh well. I'll make a new slide in model that can be removed if'n I has to get back here agian for sumpin.

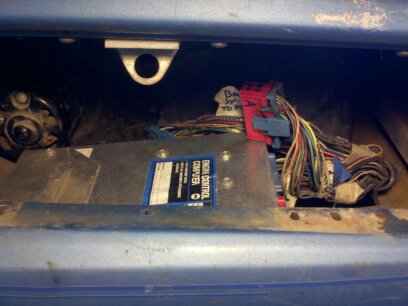

 The computer will be mounted here , this is just a inch above the fresh air intake drain hose.
